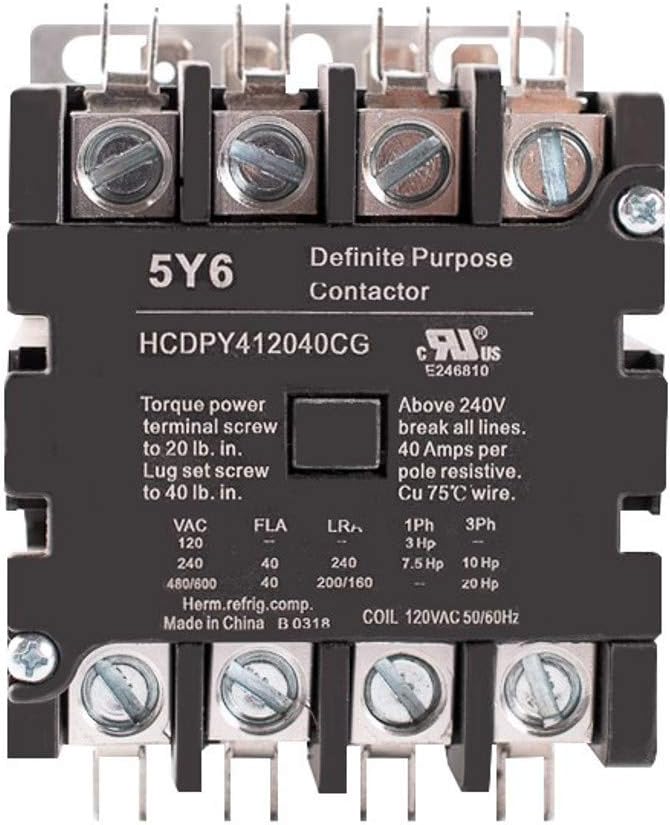

4 Pole Contactor 120v Coil Definite Purpose Magnetic 40 amp Normally Open AC Contactor - 110/120VAC Coil, Motor Load 40a. HVAC Refrigeration & Heat Pump (Pack of 2)

Pack of 2 40 Amp 4 Pole Normally Open NEMA 600V HVAC Definite Purpose Contactors for heating, refrigeration and lighting installations.Complies with NEMA 2 standard.Technical Specifications:– AC 40A. Definite Purpose. 600V– Max 2 HP Single Phase @ 115V, 10 HP @ 230V, 15 HP Three Phase @ 480V– DC 30A 24VDC– Coil:120VAC, 67VA inrush, 15VA sealed– Normally Open (N.O.) main contacts– UL Listed– Coil 110/120 VAC– Weight: 1.08 lb (0.55 kg)– Dimensions: 77.00 x 95.80 x 77.00 mm (3.00'' x 3.77'' x 3.00')Compliance:CSA C22.2 No. 14, EN 60947-4-1, EN 60947-5-1, IEC 947-2, IEC 60947-4-1, IEC 60947-5-1, UL 508, VDE 0660

• Contactor 120v coil – This 40 Amp 4-Pole NO (Normally Open) AC contactor is built for heavy-duty HVAC, lighting, and refrigeration installations in both residential and commercial settings. Meets international standards for reliable performance
• HVAC Parts Applications – Suitable for heating, refrigeration, and lighting tasks. AC-1 rated for resistance furnaces, incandescent lamps, or electric heaters; AC-3 rated for air conditioners, compressors, or fans. Ideal for HVAC contactor and a/c contactor uses
• Coil Voltage and Amp Load – Supports inductive/motor loads of 40A and resistive/incandescent loads of 50A. Compatible with 15A, 18A, 20A, 30A, 32A, 40A, and 50A loads. Perfect for air conditioner contactor and 4 pole contactor needs
• Safety Contactor – Coil voltage: AC 110V/120V, 50/60Hz. Resistance: 180 Ohms; Pick-up voltage: 88V; Drop-out voltage: 20-70V; Maximum voltage: 132V; Inrush: 65VA 50Hz; 60VA 60Hz; Sealed: 7.5VA 50Hz; 6VA 60Hz. Suitable for contactor 120v coil applications
• Contactor AC Details – Designed for reliability and durability in demanding environments. Ideal for HVAC parts and safety contactor use. UL Listed. DIMENSIONS (approx.) – 77.00 x 95.80 x 77.00 mm / 3.00'' x 3.77'' x 3.00'' (Width x Height x Depth)
