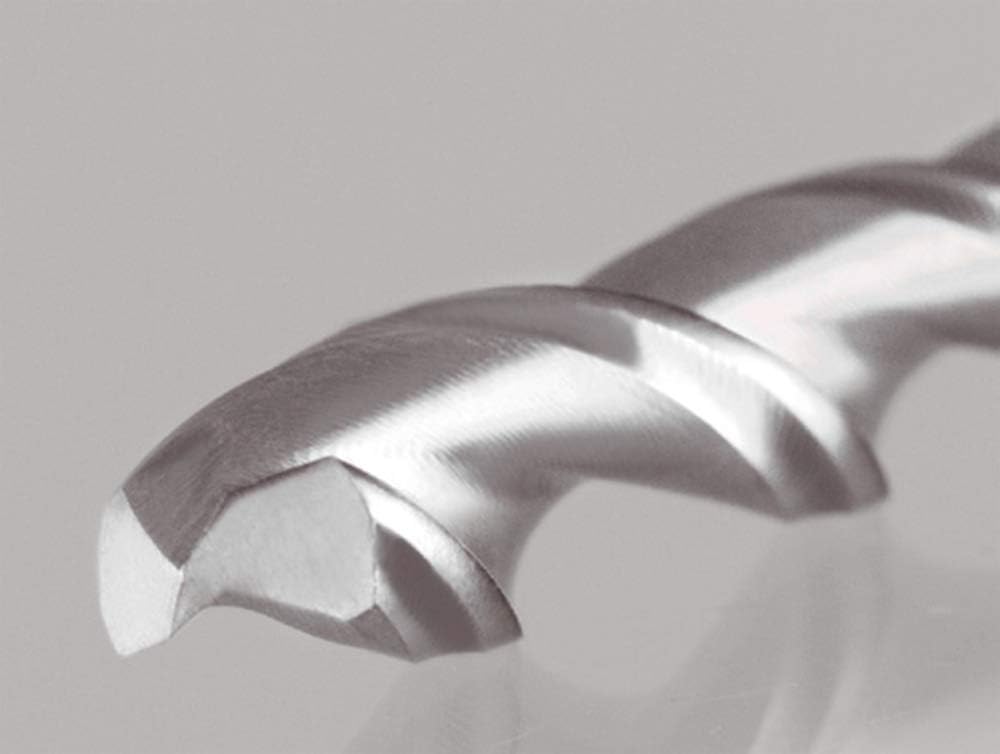

Exact 36544 Spiral Drill Bit Diameter 5.5 mm HSS-E Co5 DIN 1897 Form U Type UF-L Short
Product details
| Management number | 214326395 | Release Date | 2026/04/12 | List Price | $29.46 | Model Number | 214326395 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Exact Spiral Drill Bit Diameter 5.5 mm HSS-E Co5 DIN 1897 Shape U Type UF-L Short Application: Short and very stable multi-area drill with excellent heat resistance with special geometry for optimising chip formation and chip removal. It is ideal for mounting work in thin-walled materials such as Sheet metals, flat and profile iron medium and long cutting materials. Diameter: 5.5 mm Total length: 66 mm Cutting length: 28 mm Steel quality: HSS-E Co5 Standard: DIN 1897 Type: UF-L Drilling depth: 3xD Tip angle: 130° Spiral angle: 40° Tip sharpening: Shape U - Special sharpening.
- HSS-E Co5
- DIN 1897
- Pack of 10
- Type UF-L
| Model | 36544 |
|---|---|
| Brand Name | Exact |
| Shank Type | Straight |
| Item Weight | 0.2 Kilograms |
| Manufacturer | EXACT GmbH & Co. KG Präzisionswerkzeuge |
| Material Type | Alloy Steel |
| Item Dimensions | 2.6 x 0.22 x 0.22 inches |
| Tool Flute Type | Spiral |
| Cutting Angle String | 130 Degrees |
| Surface Recommendation | Iron,Metals |
| Global Trade Identification Number | 04026558365442 |
