HD Extender Over Single 100M CAT6 (TCP/IP) with IR 1080P Support Repeater Splitter

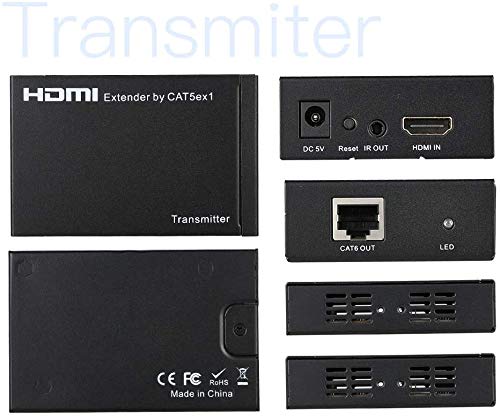

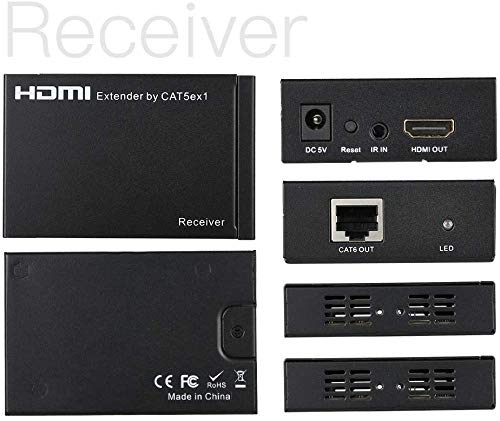

Specification:Material: MetalColor: BlackPorts: HD transmitter Input/ Output ports 1 * HD female port 1 * CAT6 HD receiver Input/ Output ports 1 * HD female port 1 * CAT6Frequency bandwidth: 2.25Gbps(single link)ESD protection(human body model): 8kV(air-gap discharge) 4kV(contact discharge)Operating temperature: 0~40 / 32~104Storage temperature: -20~60 / -4~140Relative humidity: 20%~90%RH(no condensation)Power supply: DC 5V~12VTransmitter size: 10 * 6.5 * 2.5cm / 3.9 * 2.6 * 1in(L * W * H)Receiver size: 11 * 6.5 * 2.5cm / 4.3 * 2.6 * 1in(L * W * H)Transmitter weight:Approx. 197g / 6.9ozReceiver weight: Approx. 197g / 6.9ozPackage size: 25.7 * 22.8 * 6cm / 10.1 * 9 * 2.4in(L * W * H)Package weight: 722g / 1.6lb

• upply.Compliant with HD 1.3, HDCP 1.1 and DVI 1.1.Support deep color up to 12bits/color.Support IR re-transmitting, the bi-directional IR blaster enables you to control your video source devices via its IR remote control from remote location or to control the displayer from source location.Using a single standard cat5E/6 Ethernet cable for data/DDC transmission.Equalize and recover incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming

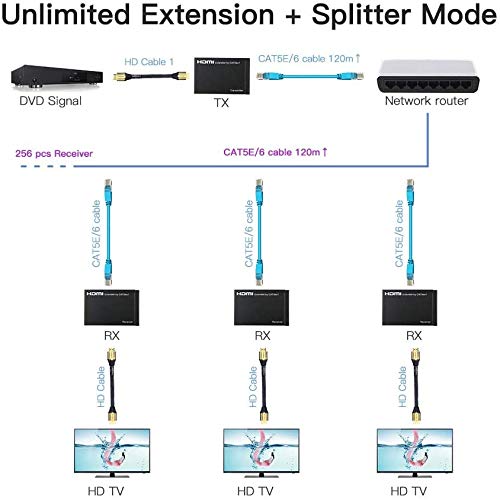

• The HD extender supports IR re-transmitting, which could transmit HD video to a distance up to 328 feet (100 meters) over a single cat6 Ethernet cable. It features a bandwidth up to 225MHz, 1080P high definition video resolutions and 12Bit per channel deep color. It provides an IR blaster which enables you to transmit infrared remote control signals, enjoying for the flexible remote control of your devices.Features:DC 5V~12V wide voltage input, universal power
• ignal quality.High compatibility, super speed HD signal transfer with ultra HD 1080P resolution, easily compatible with gaming consoles, DVD & Blu-ray Disc players and so on.Cable testing showed that with 1080P resolution the HD input source can be 20 meters away.When transmitting a signal in 1080P resolution the CAT6 operating distance is 100 meters.
